Electrical Network Management System

Distribution Analysis Tool Allows You To Primary Distribution Planning, Operation And Optimization Studies, and Feasibility Analysis.

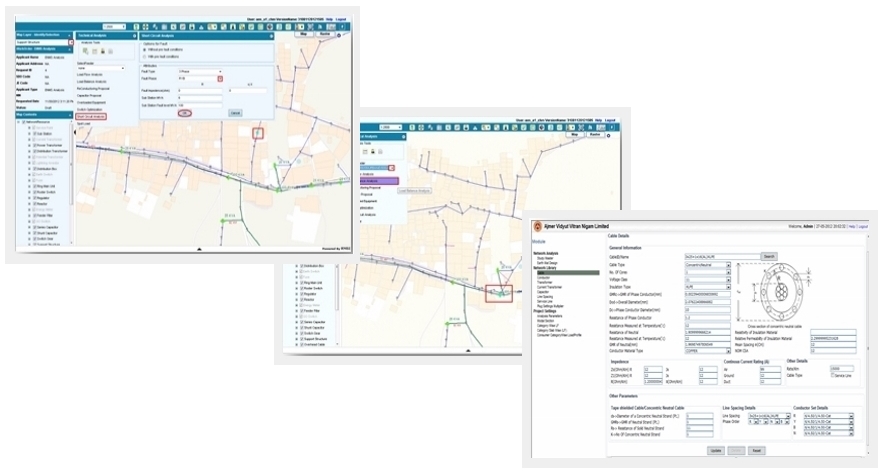

GIS based Network Analysis (NA) is one of the simulation tool for Power Distribution sector. It is mainly developed to analyze the balanced or unbalanced single-phase, two-phase, and three-phase systems which are operated in radial, looped, or meshed configuration. It allows operating the electrical network, and controlling it efficiently in order to cope with technical & commercial losses and complexities in power distribution system.


It consists of various independent modules to cater your diverse requirements, improve the Aggregate Technical and Commercial (AT & C) losses, and at the same time, helps in increasing the revenue as well.

  • It enables to generate 'Single Line Diagram' based on 'Graphical Interface System' surveyed data of electric lines and different equipment's in order to monitor the electricity consumption up to the end-user.
  • It enables HT/LT network analysis for system study on computer that renders the location of pole, transformer, distance between poles etc.

Salient Features:

  • Systematic/ unbalanced voltage drops load flow
  • Calculation for user-defined settings for load, LF, DF, etc for load flow
  • Distribution substation proposal on an overloaded LT feeder
  • Optimum transformer proposal over a selected region or node
  • Short Circuit Analysis (LL, LLG, SLG, 3 phases)
  • Extensive ‘What if’ Analysis
  • Capacitor Placement Study
  • Re-conductring Analysis
  • Energy Auditing
