ARIS MT210 Multifunction Controller | NexGEN

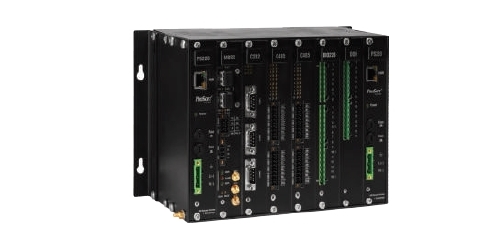

ARIS MT210 MULTIFUNCTION CONTROLLER

ARIS MT210 multifunctional modular controller is intended for data acquisition from measuring transducers, power quality monitoring devices, MP RPA terminals, input-output modules, digital and analog signals, control command path, protocol conversation and communication with automation systems on higher levels. Controller provides direct input of digital and analog signals and generating of telecontrol commands. Controller has enough functionality for organization of APCS of substation, information acquisition & transmission system / telemechanics, automated measuring and information system for electric power fiscal metering, automated system of electric power technical record-keeping, power management system.

Key Feature:

  • Redundant power supply modules with Hot Swapping functionality
  • Redundant processor boards
  • Built-in real time clock and GPS/GLONASS receiver (option)
  • Built-in wireless communication modem GPRS/3G/LTE
  • Time synchronization by NTP and PTP (IEEE 1588v2)
  • Support of redundancy protocol PRP
  • Cooling by natural convection
  • Real-time operational system
  • Transfer of independent data sets up to 6 directions using protocols IEC 61850-8-1 (MMS), IEC 60870- 5-104, IEC 60870-5-101, СRQ
  • Time stamp assignment with resolution of 1 ms
  • Information archiving for digital and analog signals
  • Recording and representation of event logs
  • power system parameters representation and energy metering through detachable display
